Image Analysis (Computer Vision Basics)

Image analysis (or computer vision) focuses on teaching computers to understand and interpret images.

Examples include:

• Detecting faces in photos
• Classifying handwritten digits (MNIST)
• Sorting medical images into healthy/unhealthy categories
• Grouping similar images automatically

Machine learning treats each image as a set of numeric values — pixel intensities — that can be analysed, visualised, and used as model inputs.

Example using MNIST Dataset

MNIST (Modified National Institute of Standards and Technology) is a dataset of 70,000 greyscale images of handwritten digits — each 28×28 pixels.

Each image is labeled with the digit it represents (0–9).

Loading the Dataset

You can load it directly from TensorFlow — no downloading or folders needed.

from tensorflow.keras.datasets import mnist​# Load data(x_train, y_train), (x_test, y_test) = mnist.load_data()​print("Training set:", x_train.shape, "Labels:", y_train.shape)print("Test set:", x_test.shape, "Labels:", y_test.shape)

Output:

Training set: (60000, 28, 28) Labels: (60000,)Test set: (10000, 28, 28) Labels: (10000,)

Each image is a 28×28 pixel grayscale image stored as a 2D NumPy array.

Visualising Sample Images

Let’s look at some random samples.

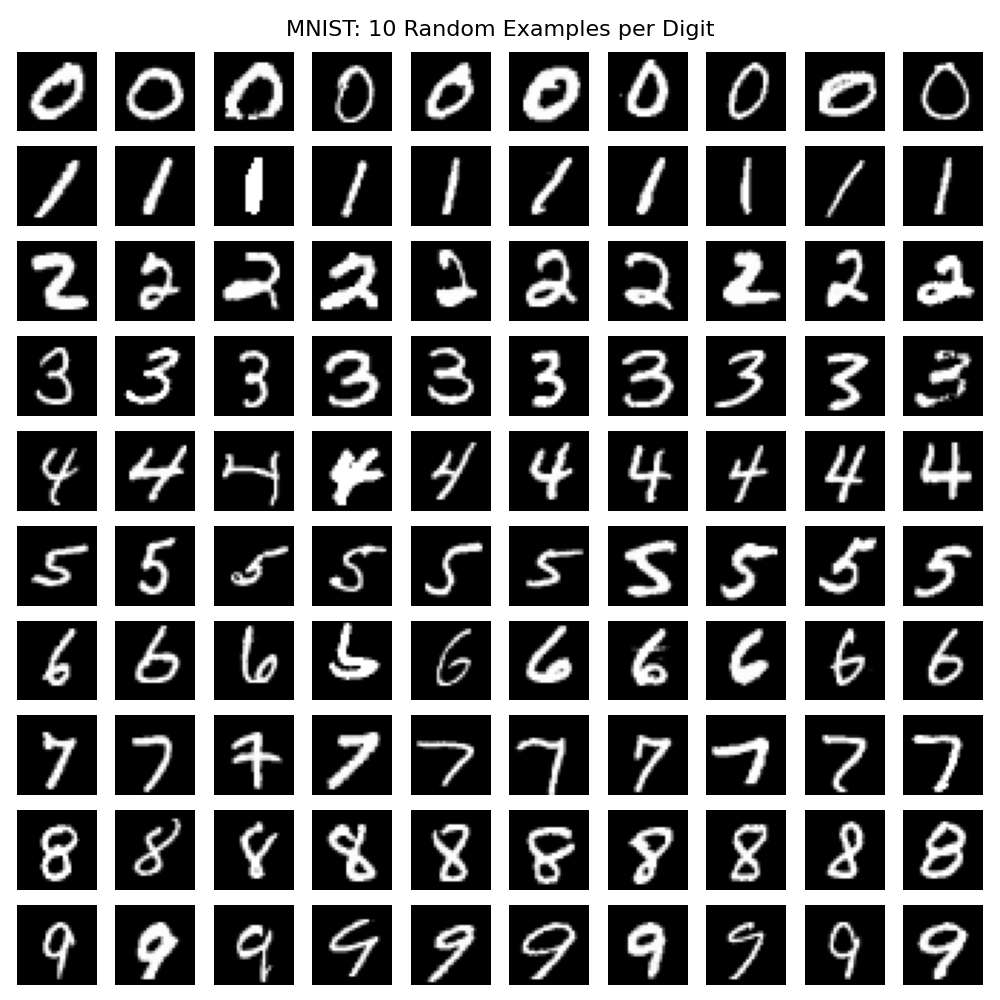

import matplotlib.pyplot as pltimport numpy as np​# Set up the grid: 10 rows (digits 0–9) × 10 columns (examples)num_classes = 10num_examples = 10​plt.figure(figsize=(10, 10))​for digit in range(num_classes):    # Get all indices for this digit    indices = np.where(y_train == digit)[0]        # Randomly choose 10 examples for this digit    selected = np.random.choice(indices, num_examples, replace=False)        for i, idx in enumerate(selected):        plt.subplot(num_classes, num_examples, digit * num_examples + i + 1)        plt.imshow(x_train[idx], cmap='gray')        plt.axis("off")​plt.suptitle("MNIST: 10 Random Examples per Digit", fontsize=16)plt.tight_layout()plt.show()

Explanation:

• np.where(y_train == digit)[0] → finds all image indices for a given digit.
• np.random.choice(..., 10, replace=False) → randomly picks 10 unique examples for that digit.
• plt.subplot(10, 10, ...) → arranges images into a 10×10 grid.
• We multiply digit * num_examples to correctly position each group of images by row.
• Each row corresponds to one digit (0 through 9).
• Each column shows a random handwriting variation of that digit.
• It gives you an instant sense of:
• How consistent (or variable) each digit looks
• Which digits may be hard for a model to distinguish (e.g., 3 vs 8, 4 vs 9)

Checking Pixel Values

Each pixel value represents brightness — 0 (black) to 255 (white).

print("Pixel value range:", x_train.min(), "to", x_train.max())​# Normalise pixel values for better model training laterx_train_norm = x_train / 255.0x_test_norm = x_test / 255.0​print("After normalisation:", x_train_norm.min(), "to", x_train_norm.max())

Outputs:

Pixel value range: 0 to 255After normalisation: 0.0 to 1.0

Explanation:

• Normalising pixel values (0–1 range) helps models train faster and more reliably.
• This step is essential for deep learning models later.

Visualising the Distribution of Labels

It’s always good to check how balanced your dataset is.

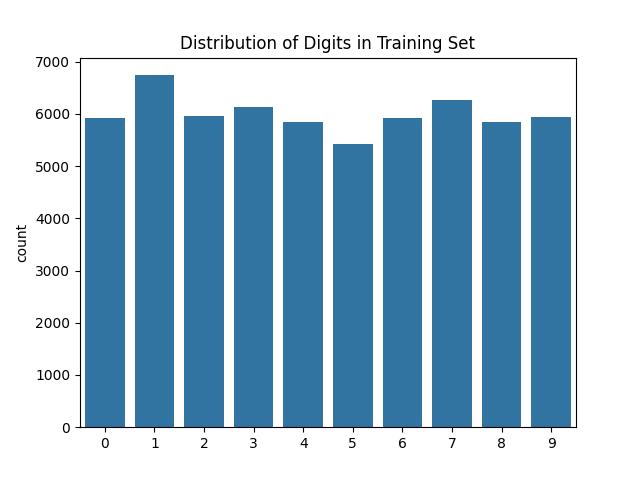

import seaborn as sns​sns.countplot(x=y_train)plt.title("Distribution of Digits in Training Set")plt.show()

Observation:
Each digit appears roughly the same number of times — a well-balanced dataset.

Computing Average Images per Label

Let’s calculate the average image for each digit (0–9).
This gives you a sense of what the “typical” example of each class looks like.

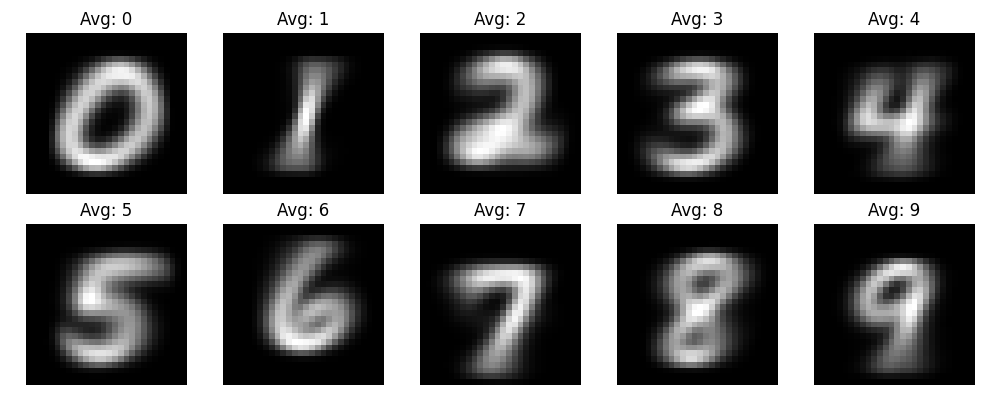

avg_images = []for digit in range(10):    avg_image = np.mean(x_train[y_train == digit], axis=0)    avg_images.append(avg_image)​# Visualise all average digitsplt.figure(figsize=(10, 4))for i in range(10):    plt.subplot(2, 5, i + 1)    plt.imshow(avg_images[i], cmap='gray')    plt.title(f"Avg: {i}")    plt.axis("off")plt.tight_layout()plt.show()

Explanation:

• Each averaged image shows a “blurred” outline of the most common way that digit is written.
• For example, the average ‘1’ will be a faint vertical line, while the average ‘0’ will be a ring.

Comparing Two Average Images

Let’s see how two digits differ visually — e.g., comparing 3 vs 8.

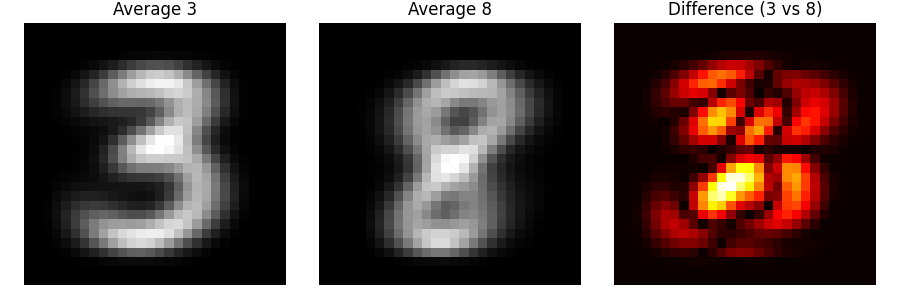

digit_a, digit_b = 3, 8​avg_a = avg_images[digit_a]avg_b = avg_images[digit_b]​# Compute pixel-wise absolute differencediff = np.abs(avg_a - avg_b)​plt.figure(figsize=(9,3))plt.subplot(1,3,1)plt.imshow(avg_a, cmap='gray')plt.title(f"Average {digit_a}")plt.axis("off")​plt.subplot(1,3,2)plt.imshow(avg_b, cmap='gray')plt.title(f"Average {digit_b}")plt.axis("off")​plt.subplot(1,3,3)plt.imshow(diff, cmap='hot')plt.title("Difference (3 vs 8)")plt.axis("off")plt.tight_layout()plt.show()

Explanation:

• Bright (red/yellow) areas in the difference plot show where the digits differ most.
• For example, 8 has extra loops that 3 doesn’t — this shows up clearly.

Reshaping for Model Input

When using this data in models later:

• Traditional ML models (like KNN or SVM) need each image flattened into a 1D vector.
• Neural networks (CNNs) keep the 2D structure (28×28, or 28×28×1 for grayscale).

# Flatten for non-CNN modelsX_train_flat = x_train_norm.reshape(len(x_train_norm), -1)X_test_flat = x_test_norm.reshape(len(x_test_norm), -1)​print("Flattened shape:", X_train_flat.shape)

Output:

Flattened shape: (60000, 784)

Quick Classifier Example

Just for demonstration, we will train a simple model (no deep learning) to see how well it can classify digits using flattened pixel data.

from sklearn.linear_model import LogisticRegressionfrom sklearn.metrics import accuracy_score​# Train on a small subset for speedsubset = 10000model = LogisticRegression(max_iter=1000)model.fit(X_train_flat[:subset], y_train[:subset])​# Test on a small subsety_pred = model.predict(X_test_flat[:2000])print("Accuracy:", accuracy_score(y_test[:2000], y_pred))

Output:

Accuracy: 0.87

That’s quite good for such a simple model and no feature engineering, however deep neural networks would push this above 98–99% accuracy.

Understanding Greyscale vs. RGB vs. RGBA Images

When working with image data in machine learning, you’ll often encounter different colour formats:

• Greyscale
• RGB
• RGBA

Each format stores pixel information differently — and this directly affects the shape of the NumPy array that represents the image.

Greyscale Images

A grayscale image contains only shades of grey — from black to white.
Each pixel has one value, usually between 0 and 255:

• 0 = black
• 255 = white

Because there’s only one value per pixel, a grayscale image is stored as a 2D array:

• Height - Number of rows (pixels vertically)
• Width - Number of columns (pixels horizontally)

So in the digit examples above that were greyscale, each image has shape (28, 28) — just 2 dimensions.

RGB Images

An RGB image has three colour channels:

• R = Red intensity
• G = Green intensity
• B = Blue intensity

Each pixel stores 3 values, one for each colour. These are combined to form the final colour seen on screen.

So an RGB image is stored as a 3D array:

• Height - Pixel rows
• Width - Pixel columns
• Channels - Colour components (3 = R, G, B)

You can get a greyscale image showing a channels colour intensity by just selecting that array element:

red_channel = arr[:, :, 0]blue_channel = arr[:, :, 1]green_channel = arr[:, :, 2]

RGBA Images

RGBA adds a fourth channel:

• A = Alpha, representing transparency (opacity).
• 0 = fully transparent
• 255 = fully opaque

So RGBA images are also 3D arrays, but with 4 channels.

Each pixel is now [R, G, B, A]. Often in machine learning the fourth alpha channel is dropped before training.

How It Affects Deep Learning Models

When feeding image data into a neural network, the input shape must match the number of channels.

If you feed greyscale images into a network expecting RGB, it will error out because (28, 28, 1) and (28, 28, 3) are fundamentally different array shapes.

You can fix that by:

# Add an extra channel dimension for grayscalex_train = x_train.reshape(-1, 28, 28, 1)

This makes it compatible with CNNs that expect a 4D input: (num_images, height, width, channels).

Converting Between Formats

You can convert between grayscale and RGB using Pillow:

from PIL import Image# Convert to greyscaleimg_gray = img.convert("L")# Convert back to RGB (3 channels)img_rgb = img_gray.convert("RGB")

Or with NumPy:

# Expand greyscale (H, W) → (H, W, 3) by copying the channelrgb_from_gray = np.repeat(x_train[0][:, :, np.newaxis], 3, axis=2)​print(rgb_from_gray.shape)
