Bimodal Distribution

A Bimodal Distribution is a probability distribution with two distinct peaks (modes).
These peaks represent two different clusters, subpopulations, or data-generating processes within the same dataset.

In simple terms:

“A bimodal distribution looks like two overlapping bell curves — each representing a different group or pattern.”

Key Concept

• A mode is the most frequent value (or region) in a dataset.
• Bimodal = 2 modes (peaks)
• Multimodal = more than 2 modes

The bimodal shape usually indicates that the data come from two different distributions combined — for example, male and female height distributions, or test scores from two different teaching methods.

Mathematical Representation

A bimodal distribution is often modelled as a mixture of two normal (Gaussian) distributions:

Where:

• w1,w2 = mixture weights (sum to 1)
• μ1,μ2 = means of each mode
• σ1,σ2 = standard deviations of each mode

Examples

• Human height - Combined male + female data, male and female height peaks
• Exam results - Two teaching methods, students taught differently
• Income data - Two economic classes, low vs high earners
• Pixel intensities - Background vs object pixels, two brightness levels
• Voice pitch - Two genders, male vs female pitch ranges

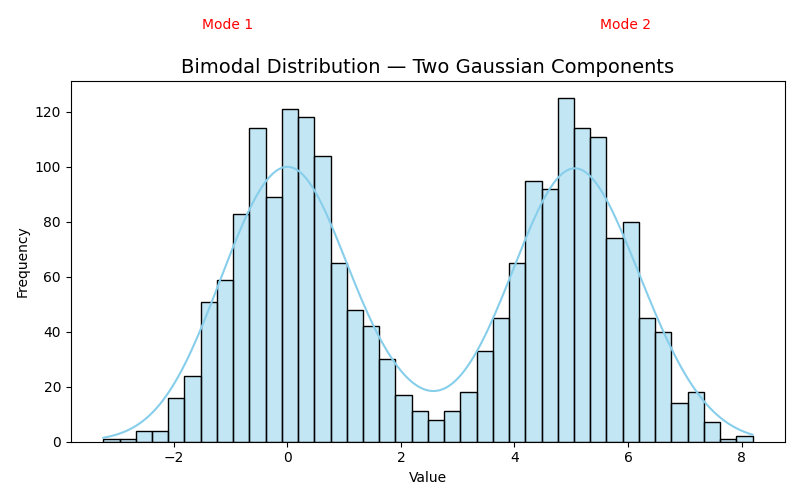

A histogram and smooth density curve with two clear peaks:

• One centred near x ≈ 0 (Mode 1)
• One centred near x ≈ 5 (Mode 2)

The combined distribution is wider and non-symmetric.
The mean lies between the two peaks.

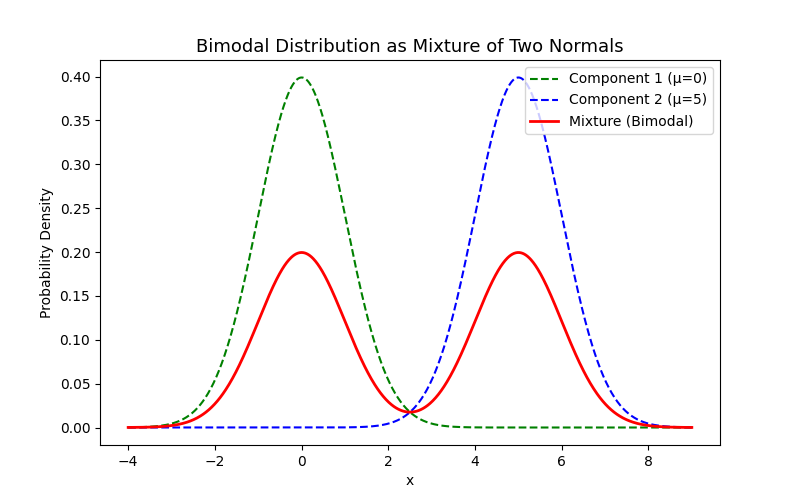

Visualising the Two Components Separately

Shows clearly how two simple normal curves combine to form one bimodal curve.

In Machine Learning

• Data exploration - Detecting multiple clusters or subgroups
• Clustering algorithms - k-Means, GMMs can separate bimodal data
• Anomaly detection - Points between peaks may be low-probability
• Mixture models - Modelled using Gaussian Mixture Models (GMMs)
• Feature engineering - Suggests that separate models/features may be needed per mode
