Multimodal Distribution

A Multimodal Distribution is a probability distribution that has two or more modes (peaks).
Each mode represents a local maximum in the data’s frequency or probability density.

In simple terms:

“A multimodal distribution has multiple peaks — each one corresponds to a subgroup or pattern within the data.”

Understanding Modes

• A mode is the most frequent value or range in a dataset.
• Unimodal: 1 peak (e.g., Normal Distribution)
• Bimodal: 2 peaks
• Multimodal: 3 or more peaks

Each mode can represent a different cluster, category, or data-generating process.

Mathematical Representation (Mixture Model)

A multimodal distribution can often be modelled as a mixture of multiple distributions, such as:

Where:

• N( μ_i, σᵢ² ) = Normal (Gaussian) component i
• wᵢ = weight (probability) of each component (sum of all wᵢ = 1)
• k = number of modes (components)

This is called a Gaussian Mixture Model (GMM) when the components are normal distributions.

Examples

• Heights of a mixed population - Adults + children, different age groups
• Vehicle speeds - Cars + trucks, two vehicle types
• Exam results - Two or more teaching methods, different learning effects
• Income data - Low, middle, and high income groups, economic classes
• Voice pitch - Male + female + child speakers, three biological groups

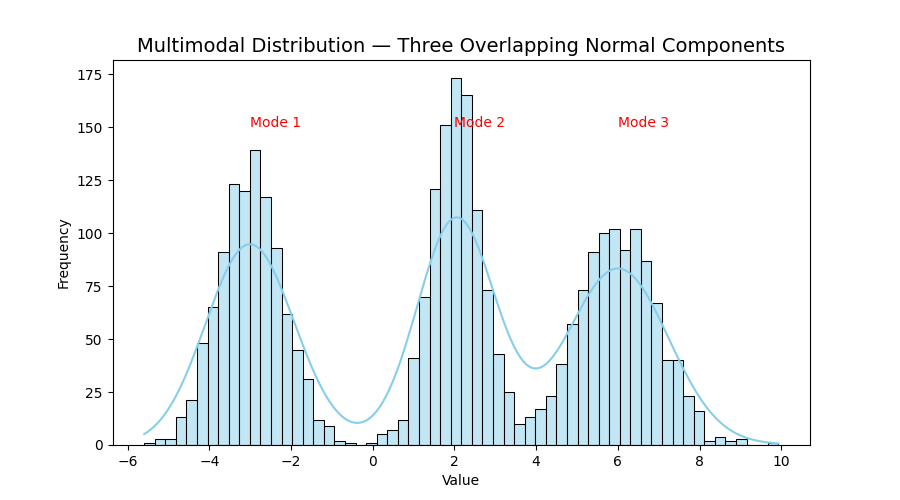

A histogram with three clear peaks, each representing a distinct mode:

• Mode 1 near -3
• Mode 2 near 2
• Mode 3 near 6

The overall shape is non-symmetric and multi-peaked.
The data represent three overlapping subpopulations.

Visualising Each Component

This clearly shows how multiple normal components combine to form a multimodal curve.

In Machine Learning

• Clustering (e.g. GMMs) - Detecting hidden subgroups in data
• Density estimation - Modelling complex, non-Gaussian data
• Anomaly detection - Identifying samples in low-probability regions (between peaks)
• Data exploration - Revealing multiple underlying patterns
• Feature engineering - Suggests creating categorical indicators for groups
